1000ft 2C 22AWG Stranded Control Cable - CMR - White
Click the image to zoom
1000ft 2C 22AWG Stranded Control Cable - CMR - White
$98.75
In stock
— ships in 1 business day
Description

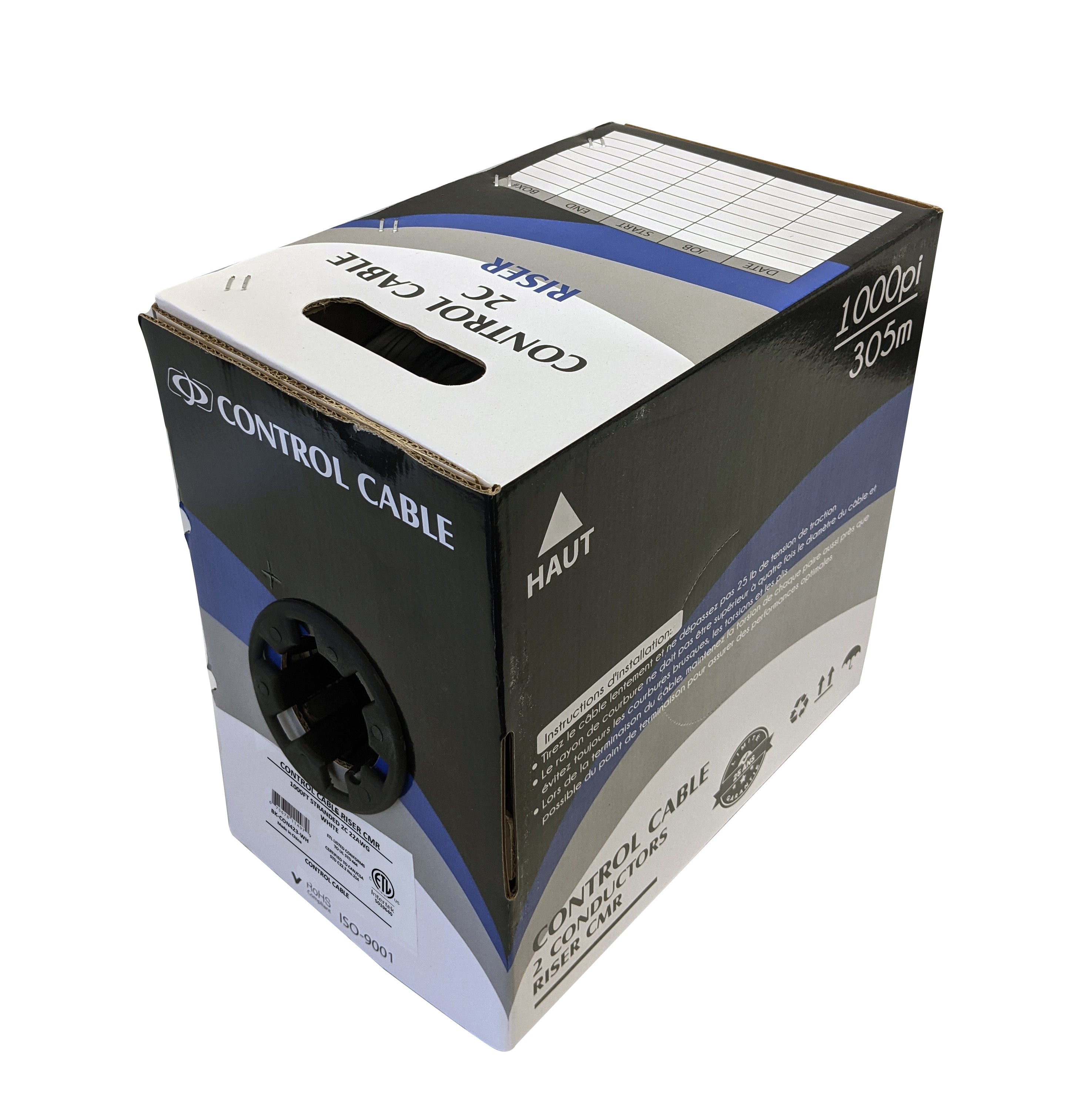

This 2 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
Specifications
1000ft 2C 22AWG Stranded Control Cable - CMR - White
This 2 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems.
Cable Length: 1000 foot [305m] Pull Box
Jacket Color: White
Min. Ave. Jacket Thickness: 0.36 mm
Jacket Material: PVC - Polyvinyl Chloride
Nominal Jacket Thickness: 0.45mm
| Product | 1000ft 2C 22AWG Stranded Control Cable - CMR - White |
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Thickness | 0.45mm |
| Number of Conductors | 2 Conductors (Red/Black) |
| Conductors Material | Bare Copper - Oxygen-Free |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.4mm |
| Nominal Insulation Diameter | 1.65mm |
| Wire Gauge | 22AWG |
| Maximum Voltage | 300V |
| Stranding | 7*0.25mm |
| Rip Cord | Yes |
| Temperature Rating | -20℃ ~ 75℃ |
